VALOR $395.000+iva

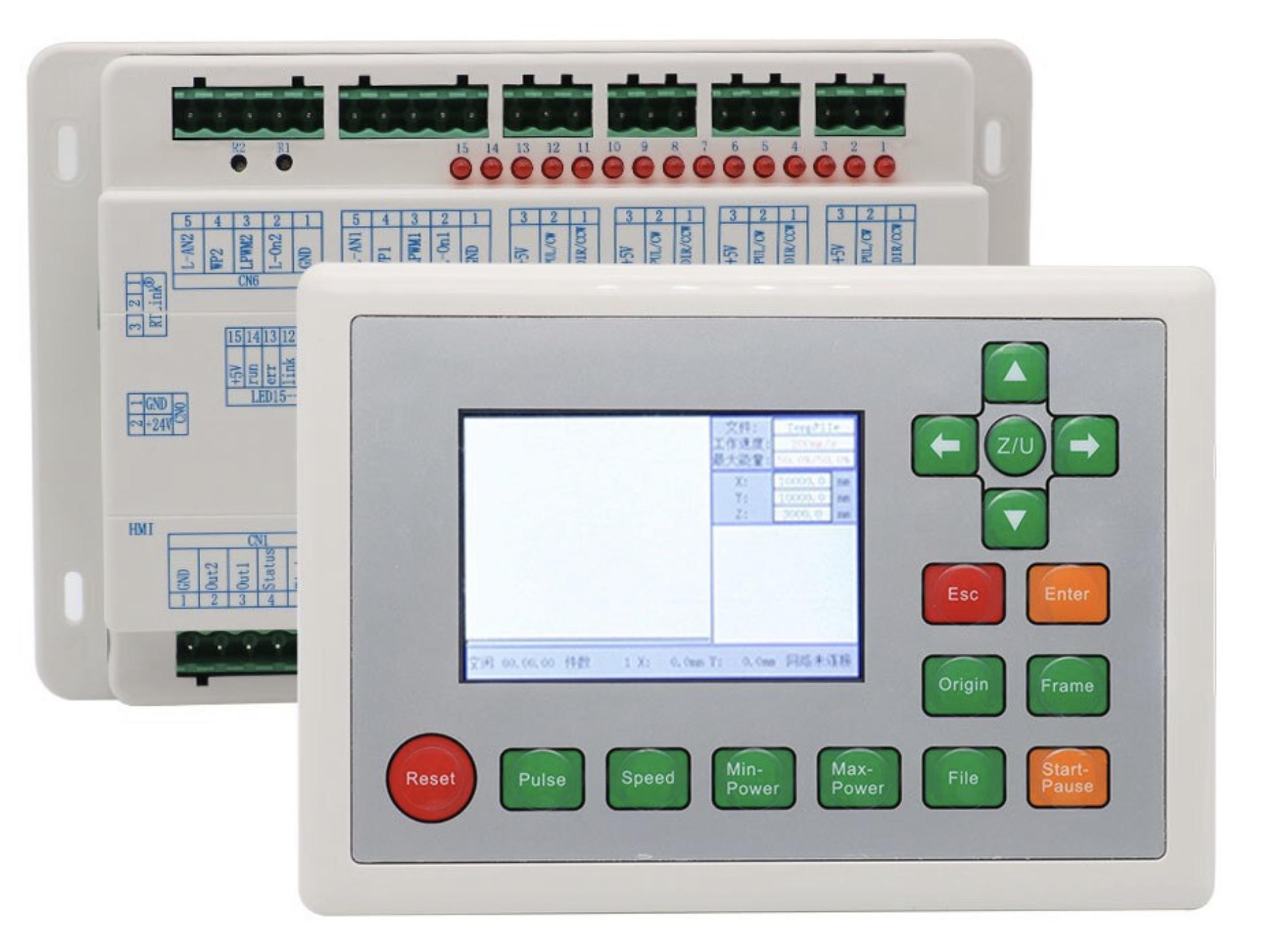

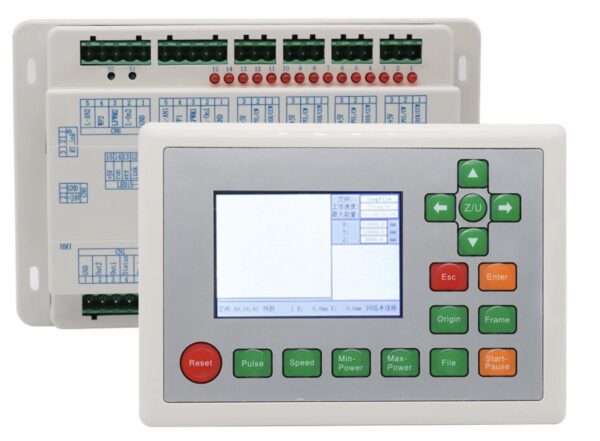

Ruida RDC6442G/S
CO2 laser controller board is a new generation system for 4-Axis laser engraving and cutting controller.
Digital Laser Control Signals
(1) TTL level output, 50 mA, Drive Capability
(2) PWM frequency 2K-50K for adjustable
(3) PWM duty ratio is 1% ~ 99%, adjustable
(4) PWM value is up to 5.0 V
One-Way 24V Power Supply, >2A
Motor Control Signal: Common-anode Output, Drive Capability 20 mA. Motor control pulse frequency: Max.500KHZ
10/100M Ethernet + USB 2.0 Control.
Interpolation: Linear/circular arc/B spline, accuracy + / – 0.5 pulse
Output: 4-channel, photoelectric isolated OC gate output, the max. drive capability 500mA drive capability (with follow-current protection).
Input: 4-channel, photoelectric isolated input, compatible with 5V/ 12V / 24V logic level
