sin stock

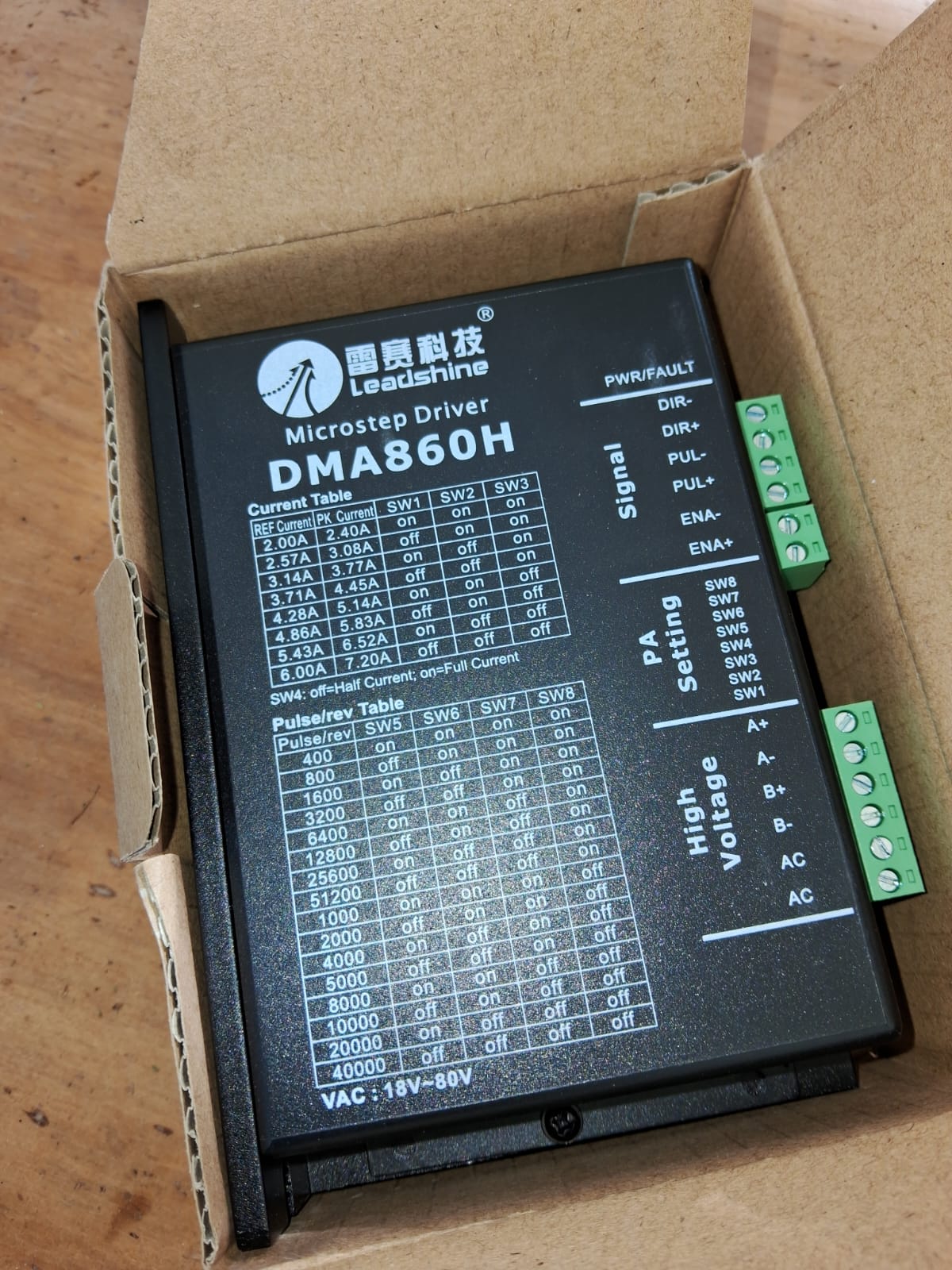

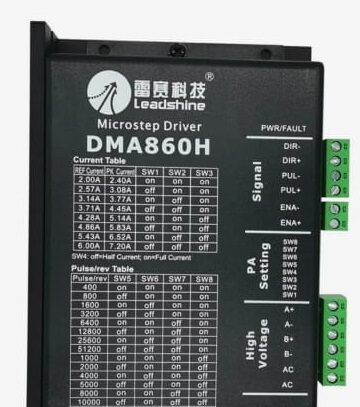

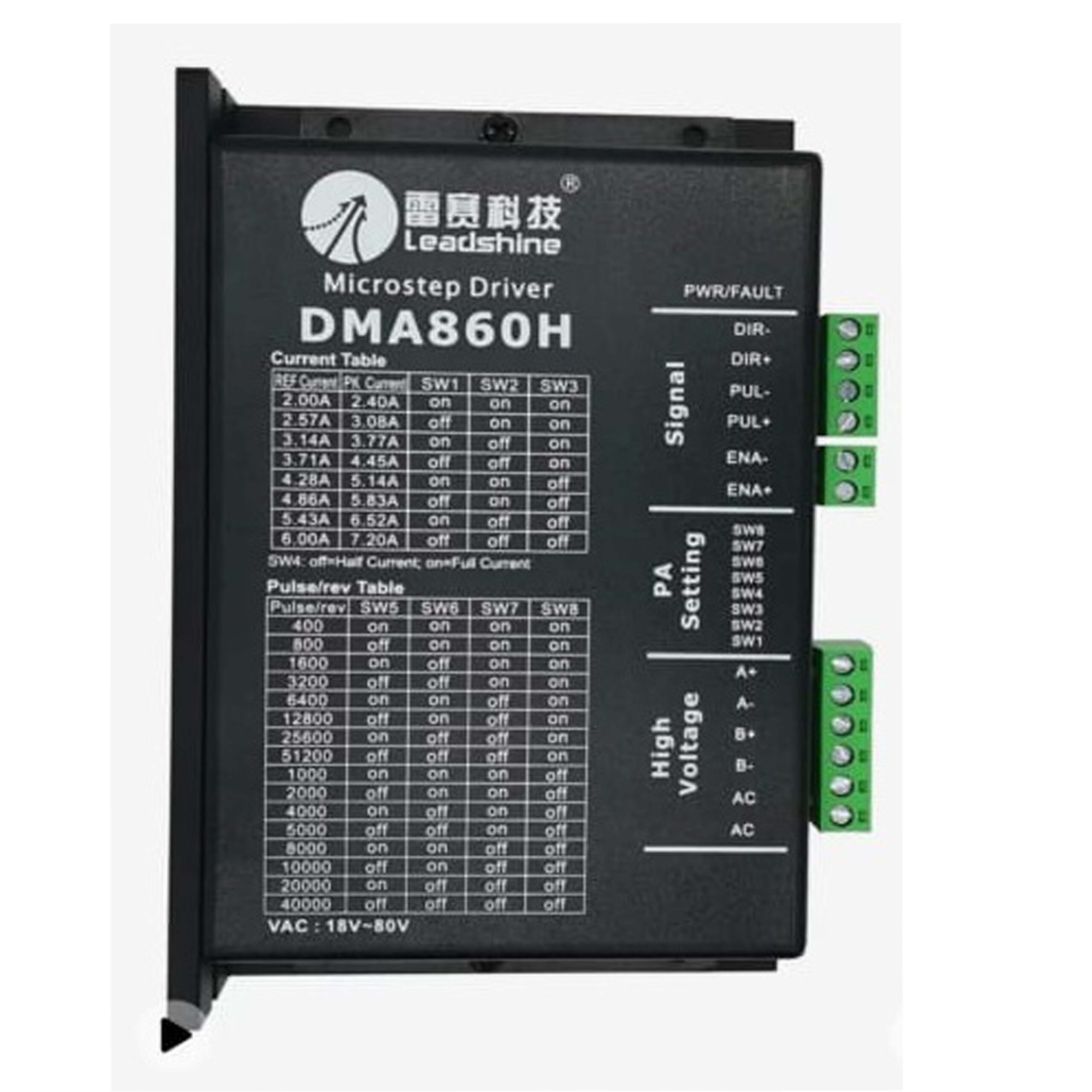

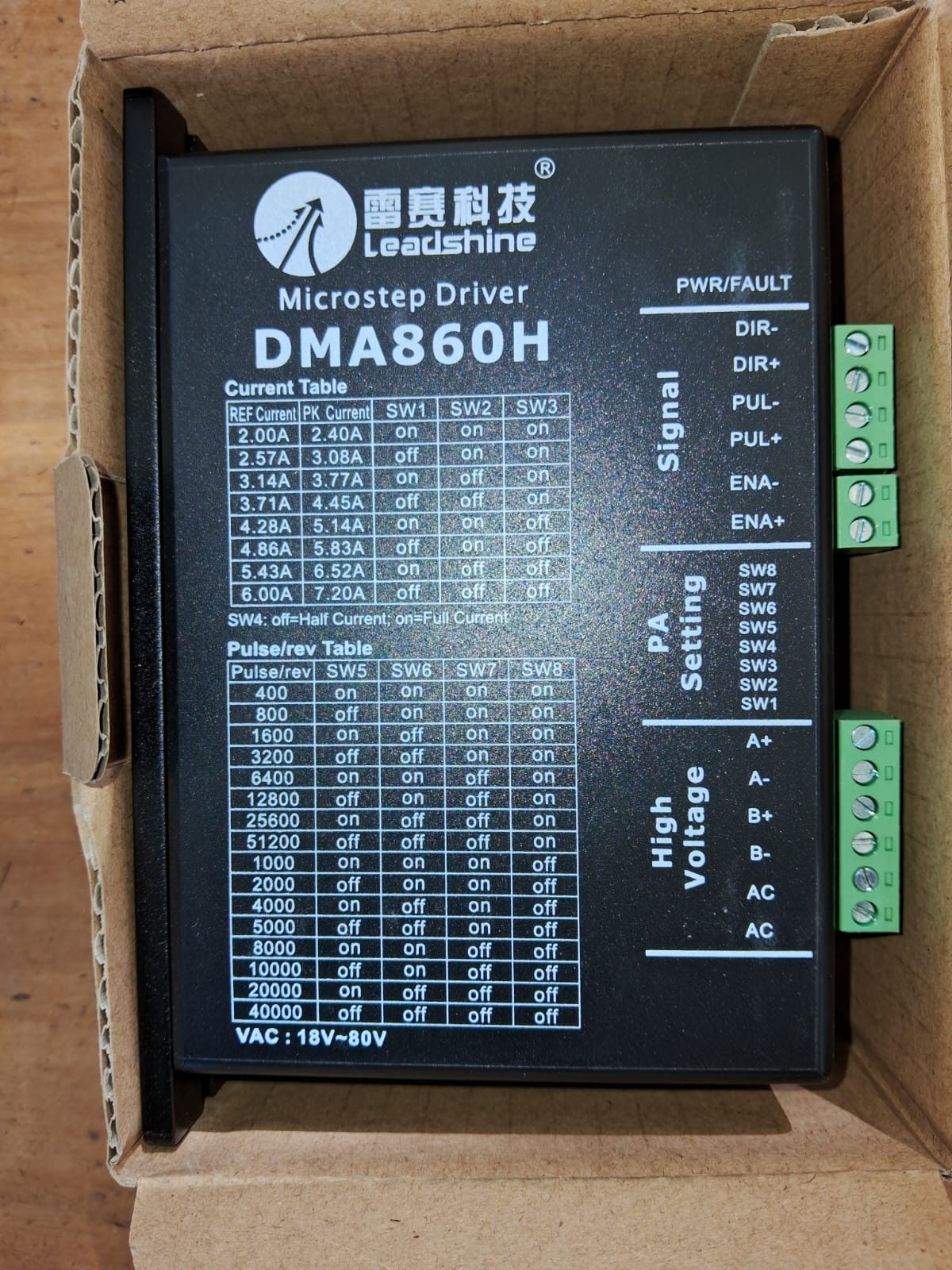

DRIVER DMA860h
Driver utilizado para controlar motores paso a paso , para router o màquinas láser.
2. Specifications Electrical Specifications (Tj = 25℃/77℉) Parameters Min DMA860H Typical Output Current 1.0 – Max Unit 7.2 (Peak) Input Voltage +24 +68 +112 A VDC Logic Signal Current 7 Pulse input frequency 0 10 16 – mA 200 kHz Pulse Width 2.5 Pulse Voltage – – – 5 uS – VDC Isolation resistance 500 MΩ 1 DMA860H Fully Digital Stepper Drive Manual V1.0 Operating Environment and other Specifications Cooling Natural Cooling or Forced cooling Environment Avoid dust, oil fog and corrosive gases Ambient Temperature Operating Environment Humidity 0℃ － 50℃ 40%RH － 90%RH Operating Temperature Vibration 70℃ Max 5.9m/s2 Max Storage Temperature -20℃ － 65℃ Weight Approx. 570g (20.10 oz) Mechanical Specifications (unit: mm [inch])
