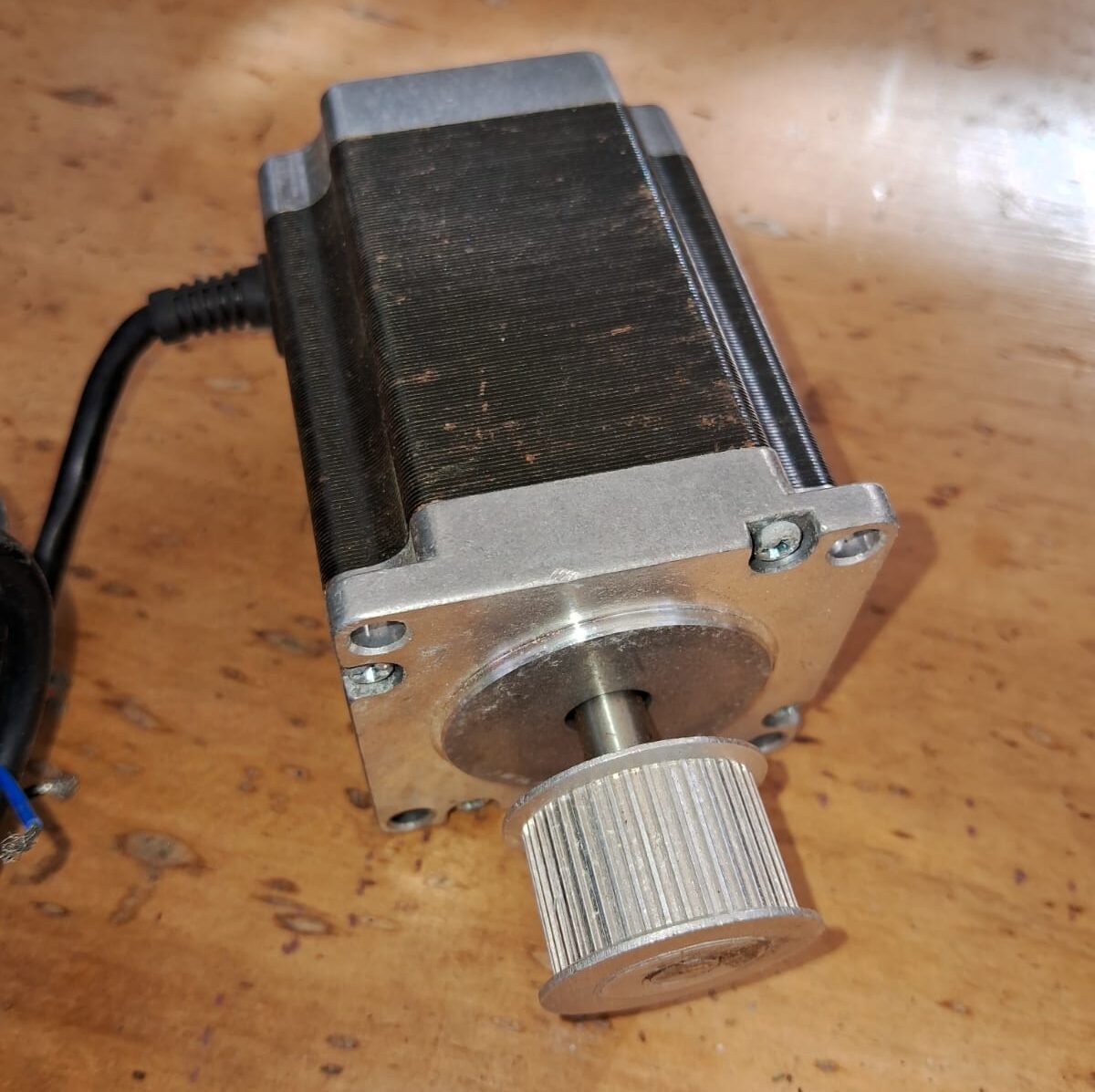

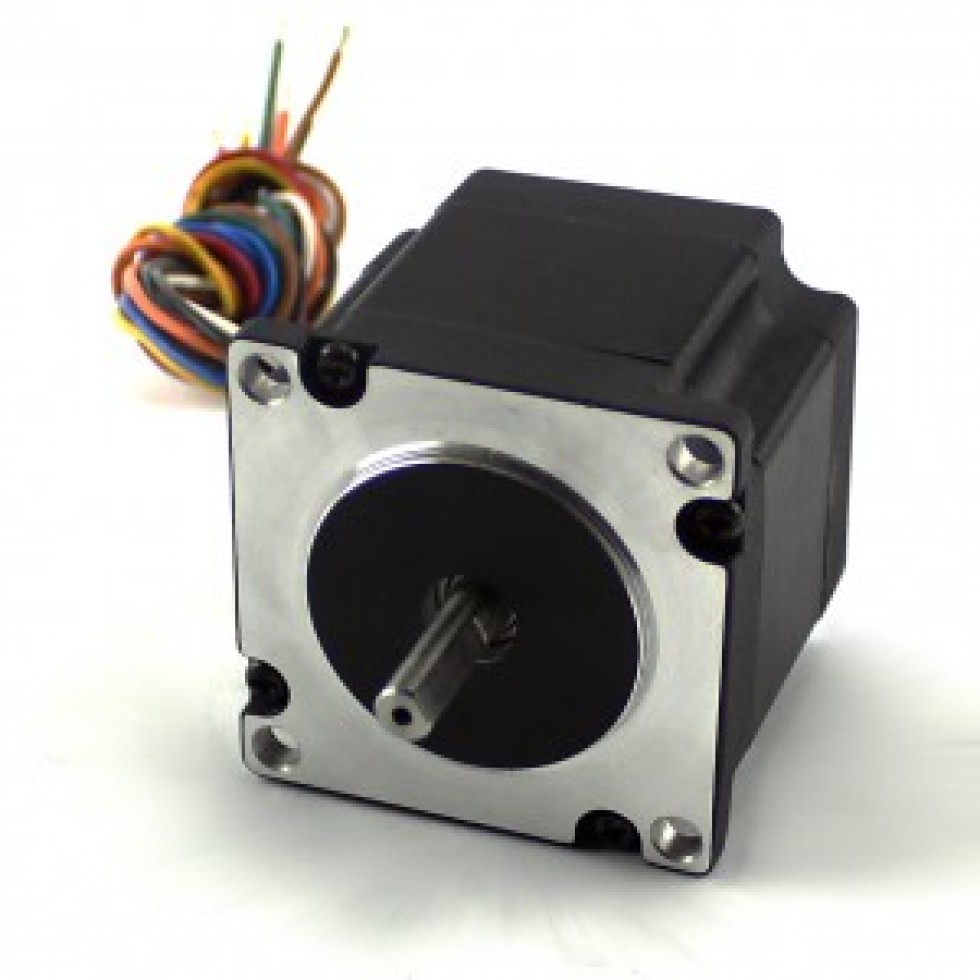

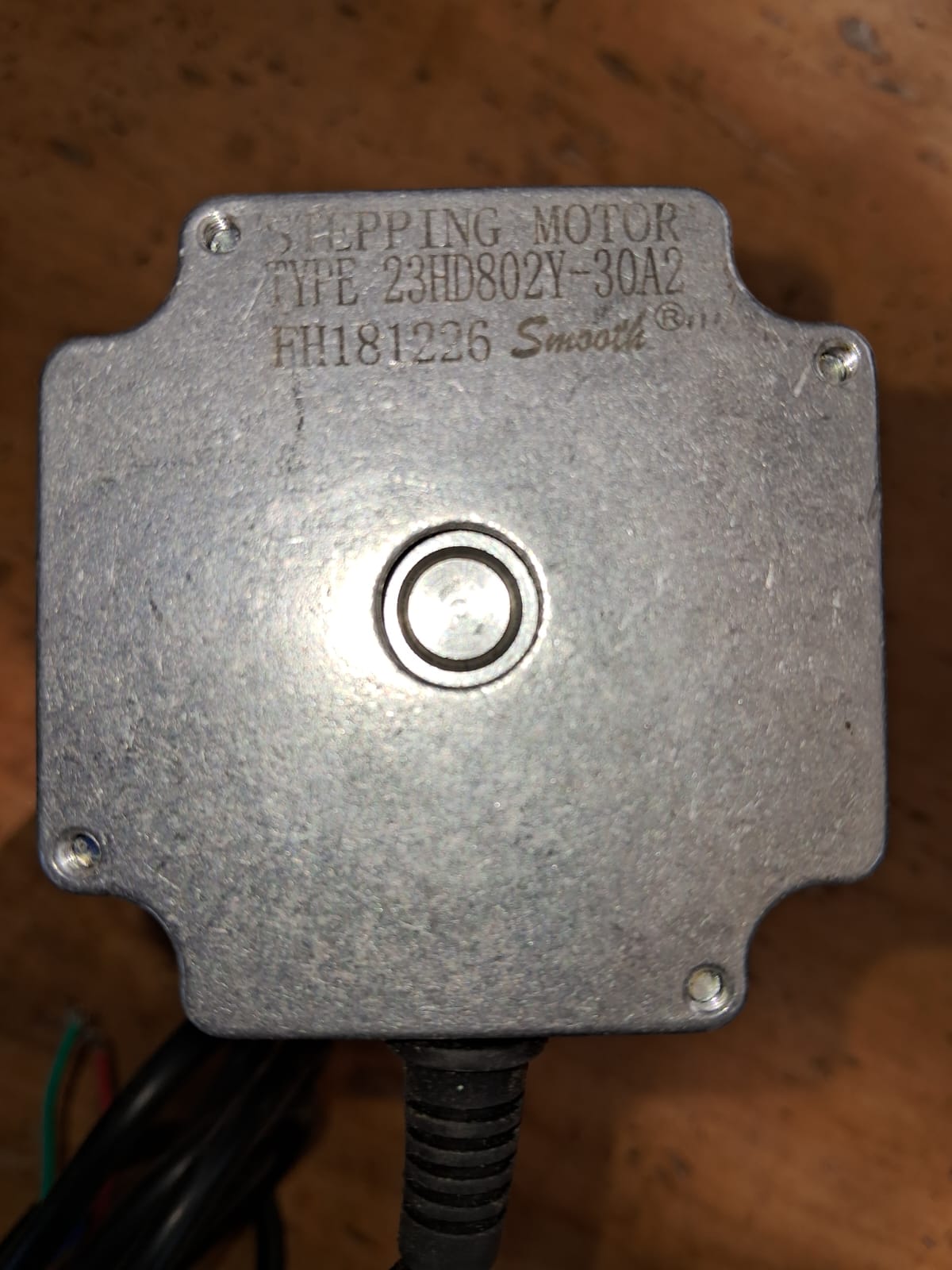

Electrical Specifications:

• Manufacturer Part Number: ISC04-20
• Step Angle: 1.8deg
• Holding Torque: 190Ncm(269oz.in)
• Rated Current/phase: 2.8A
• Phase Resistance: 1.13ohms
• Inductance: 5.4mH ± 20%(1KHz)

Physical Specifications:

• Frame Size: 57 x 57mm
• Body Length: 96mm
• Shaft Diameter: Φ6.35mm
• Shaft Length: 21mm
• Weight: 1230g

Driver Specifications:

• Output Peak Current: 1.5 – 4A
• Input Voltage: 12 – 38VDC
• Insulation Class: B 130°C[266°F]
• Speed control through external potentiometer 0. 75 – 1250RPM
• Isolation Resistance: More than 100MΩ
• Dielectric strength: 500VAC for 1MIN.

Connection
